Description
Accurate

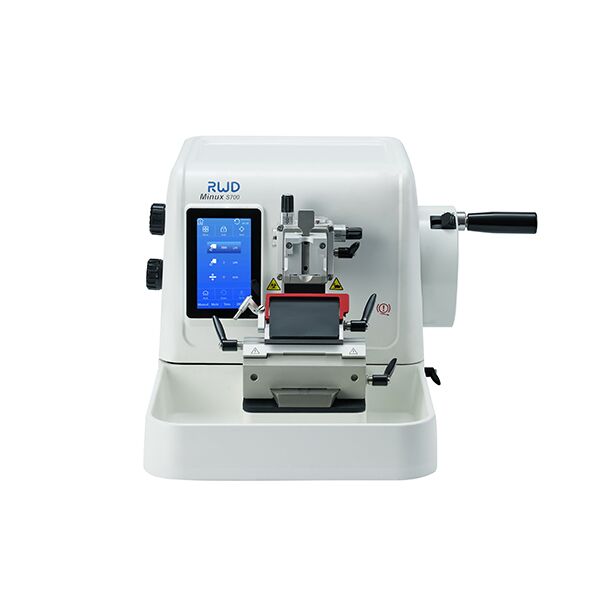

- Precise sampling: Our rotary microtome machine is well-equipped with Cross roller bearings and Spindle, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality.
- Accurate positioning: With patented pointer identification technology, our rotary microtome machine enables visual adjustment of the sample angle for pinpoint accuracy in positioning; the knife holder has a small lateral displacement which further enhances accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.
Safety
- Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade.
Intelligent
- Information tracking: Our rotary microtome machine is built with a 5-inch touch screen and history recording system that make it easy to trace back the past information and quickly solve the problems.
Convenience
- Convenient operation: German military-grade side injection knob of the rotary microtome machine conforms to ergonomic design, and the operation is more comfortable and coordinated.
- Convenient maintenance: special material waste tank, non-wax, easy to clean
Specification
| Type | Semi-motorized: motorized feeding manual sectioning |
| Section thickness range | Range: 0.5-100 μm Setting values: 0.5 – 5.0 μm in 0.5 μm increments 5- 20 μm in 1μm increments 20 – 30 μm in 2 μm increments 30- 60 μm in 5 μm increments 60- 100μm in 10 μm increments |
| Trimming section thickness | Range：1 – 800 μm Setting values: 1- 10 μm in 1μm increments 10- 20 μm in 2 μm increments 20- 50 μm in 5 μm increments 50- 100 μm in 10 μm increments 100- 800 μm in 50 μm increments |
| Specimen Feed | 28 mm |
| Vertical Stroke | 70 mm |
| Maximum sample size | 60×50×40 mm |
| Specimen orientation | X axis/Y axis8°, Z axis 360° |
| Specimen retraction | 0-250 μm adjustable |
| Blade holder | 2-in-1 |
| Remaining horizontal stroke | 1 mm, acoustical and visual prompts |
| Rock mode | √ |
| Memory position | √ |
| Historical record system | √ |
| Weight | 28 kg |
| Dimension | 470 (W)×553 (D)×305 (H) mm |
Order Information
S700 Rotary Microtome Configuration
| NO. | Configuration | Model | Number | Note |
| 1 | Host of S700 | S700 | 1 | |
| 2 | Blade holder assembly | S700-F7 | 1 | Compatible with low and high profile blades |
| 3 | Universal clamp | S700-F3 | 1 | |
| 4 | Tool set | S700-F1 | 1 | Screw tools, brush, etc |
| 5 | Easy of cleaning section waste tray (Large) | S700-F10 | 1 | Easy of cleaning section waste tray (Large) |
| 6 | User manual | 1 | ||
| 7 | Power cable | 1 | ||
| 8 | Dust cover | 1 | ||
| Optional： | ||||
| 1 | Standard? clamp | S700-F4 | 1 | Standard? clamp |
