Description

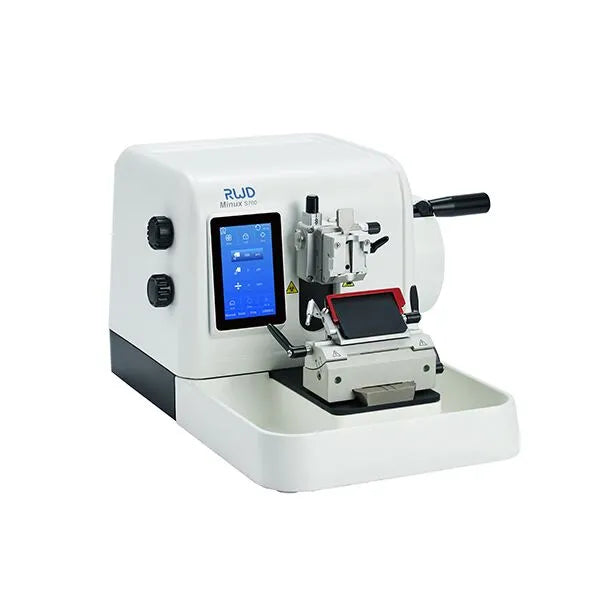

Built upon market-leading microtome machine design, S700 Rotary Microtome enables you to cut sections precisely, safely and super easy to operate. It displays extraordinary ergonomic characteristics for comfortable operation. It is a semi-automatic model, more in line with your slicing habits.
When working with delicate specimens (example being brain samples) the rotary microtome system will provide reproducible, thin, serial sections of maximum quality time and again. Unique side specimen knob and visual pointer design make specimen advance and retraction more precise. Handwheel double lock system, knife ejector, and guard enhance safety.
The 2-in-1 blade holder satisfies the use of high and low-profile blades.
Application field: Histopathology/Anatomical Pathology
Accurate
- Precise sampling: Our rotary microtome machine is well-equipped with Cross roller bearings and Spindle, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality.
- Accurate positioning: With patented pointer identification technology, our rotary microtome machine enables visual adjustment of the sample angle for pinpoint accuracy in positioning; the knife holder has a small lateral displacement which further enhances accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.
Safety
- Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade.
Intelligent
- Information tracking: Our rotary microtome machine is built with a 5-inch touch screen and history recording system that make it easy to trace back the past information and quickly solve the problems.
Convenience
- Convenient operation: German military-grade side injection knob of the rotary microtome machine conforms to ergonomic design, and the operation is more comfortable and coordinated.
- Convenient maintenance: special material waste tank, non-wax, easy to clean
Specification
| Type | Semi-motorized: motorized feeding manual sectioning |
| Section thickness range | Range: 0.5-100 μm Setting values: 0.5 – 5.0 μm in 0.5 μm increments 5- 20 μm in 1μm increments 20 – 30 μm in 2 μm increments 30- 60 μm in 5 μm increments 60- 100μm in 10 μm increments |
| Trimming section thickness | Range：1 – 800 μm Setting values: 1- 10 μm in 1μm increments 10- 20 μm in 2 μm increments 20- 50 μm in 5 μm increments 50- 100 μm in 10 μm increments 100- 800 μm in 50 μm increments |
| Specimen Feed | 28 mm |
| Vertical Stroke | 70 mm |
| Maximum sample size | 60×50×40 mm |
| Specimen orientation | X axis/Y axis8°, Z axis 360° |
| Specimen retraction | 0-250 μm adjustable |
| Blade holder | 2-in-1 |
| Remaining horizontal stroke | 1 mm, acoustical and visual prompts |
| Rock mode | √ |
| Memory position | √ |
| Historical record system | √ |
| Weight | 28 kg |
| Dimension | 470 (W)×553 (D)×305 (H) mm |
| Model | S700 Semi-Auto | S700A Fully-Auto |
| Section thickness setting range: 0.50 – 100 µm | √ | √ |
| Trimming section thickness setting range: 1 – 800 µm | √ | √ |
| Electric sectioning speed: 0–1800 µm | √ | √ |
| Specimen retraction: 0–250 µm | √ | √ |
| Specimen feed: 28 mm | √ | √ |
| Vertical stroke: 70 mm | √ | √ |
| Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8° | √ | √ |
| Maximum specimen size: 55×50×30 mm | √ | √ |
| W × D × H | 470 × 553 × 305 mm | 470 × 553 × 305 mm |
| Machine weight | 28 kg | 36.4 kg |
| Fully motorized and semi-motorized mode switch | √ | |
| Emergency stop button | √ | |
| Cut window function | √ | |
| Slice speed selection | √ | |
| Multiple slice modes | √ | |
| Pedals | √ |
Order Information
S700 Rotary Microtome Configuration
| NO. | Configuration | Model | Number | Note |
| 1 | Host of S700 | S700 | 1 | |
| 2 | Blade holder assembly | S700-F7 | 1 | Compatible with low and high profile blades |
| 3 | Universal clamp | S700-F3 | 1 | |
| 4 | Tool set | S700-F1 | 1 | Screw tools, brush, etc |
| 5 | Easy of cleaning section waste tray (Large) | S700-F10 | 1 | Easy of cleaning section waste tray (Large) |
| 6 | User manual | 1 | ||
| 7 | Power cable | 1 | ||
| 8 | Dust cover | 1 | ||
| Optional： | ||||
| 1 | Standard clamp | S700-F4 | 1 | Standard clamp |
