Type | Semi-motorized: motorized feeding manual sectioning |
Section thickness range | Range: 0.5-100 μm Setting values: 0.5 – 5.0 ?m in 0.5 ?m increments 5- 20 ?m in 1?m increments 20 – 30 ?m in 2 ?m increments 30- 60 ?m in 5 ?m increments 60- 100?m in 10 ?m increments |
Trimming section thickness | Range:1 – 800 ?m Setting values: 1- 10 ?m in 1?m increments 10- 20 ?m in 2 ?m increments 20- 50 ?m in 5 ?m increments 50- 100 ?m in 10 ?m increments 100- 800 ?m in 50 ?m increments |
Specimen Feed | 28 mm |
Vertical Stroke | 70 mm |
Maximum sample size | 60×50×40 mm |
Specimen orientation | X axis/Y axis8°, Z axis 360° |
Specimen retraction | 0-250 μm adjustable |
Blade holder | 2-in-1 |
Remaining horizontal stroke | 1 mm, acoustical and visual prompts |
Rock mode | √ |
Memory position | √ |
Historical record system | √ |
Weight | 28 kg |
Dimension | 470 (W)×553 (D)×305 (H) mm |
?

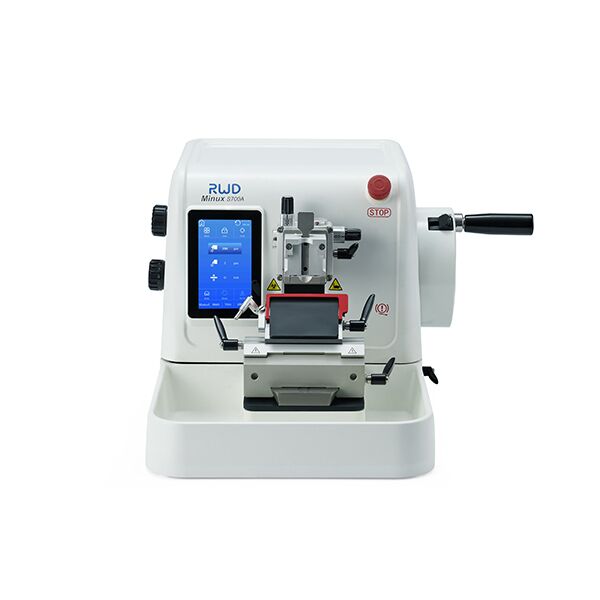

S700A Rotary Microtome Configuration
NO. | Configuration | Model | Number |
1 | Host of S700A | S700A | 1 |
2 | Blade holder assembly | S700-F7 | 1 |
3 | Universal clamp | S700-F3 | 1 |
4 | Tool set | S700-F1 | 1 |
5 | Easy of cleaning section waste tray (Large) | S700-F10 | 1 |
6 | Dummy plug | 1 | |
7 | User manual | 1 | |
8 | Power cable | 1 | |
9 | Dust cover | 1 | |
Optional: | |||
1 | Footswitc | S700A-F3 | 1 |
2 | Standard? clamp | S700-F4 | 1 |
?
