Description
- 1/12.1 inches TFT LCD screen with?all?parameters?clearly?visible
- Microflow EtCO2 technology, minimal sampling rate and more accurate data. (Optional)
- Compact design: back cabinet for easy accessory storage and less than 4kg weight
- New animal blood pressure algorithm for fast and accurate measurement
- Multi-lead synchronized ECG signal analysis for better detection, with 5 leads
- IP perfusion index measurable for more accurate SpO2
Specification
| Display | RM700-10.1 inches TFT LCD screen, RM800 -12.1 inches, RM800T-12.1 inches touch screen; Resolution:1280×800 pixels |
| Size | 198mm(H) * 320mm(W)* 262mm(L) |
| Weight | ＜4kg |
| Data Storage | Trends: 180 hours Parameter alarms: 3000 NIBP measurements: 2400 sets Full-disclosure waveforms: 72 hours at maximum |
| ECG | |
| Input mode | 5 leads |
| HR range | 10-350bpm |
| SpO2 | |
| Measuring range | 0~100% |
| Accuracy | At 70~100%, ±2% At 0~69%, unspecified |
| PI measurement range | At least 0.05~20.00% |
| EtCO2 | |
| Measurement method | Microflow |
| Sample flowrate | 50±10mL/min |
| EtCO2/FiCO2 measurement range | 0%～19.7% (0mmHg～150mmHg)
|
| NIBP | |
| Operation mode | Manual, Auto, STAT, Sequence |
| Measurement method | Automatic Oscillometry |
| Cuff pressure measuring range | 0~300mmHg |
| Measurement parameters | SYS, DIA, MAP,PR |
| TEMP | |
| Measuring range and accuracy | 0.0~50.0℃ (32℉~122℉), 0.1℃ or 0.1℉ |
| RESP | |
| Measurement range | 0~150 rpm |
| Accuracy | ±2 rpm or ±2%, whichever is greater |
Order Information
| Model | Description |
| RM700 | Veterinary Monitor with 10.1 inches screen, SpO2,ECG,RESP,HR,NIBP and TEMP |

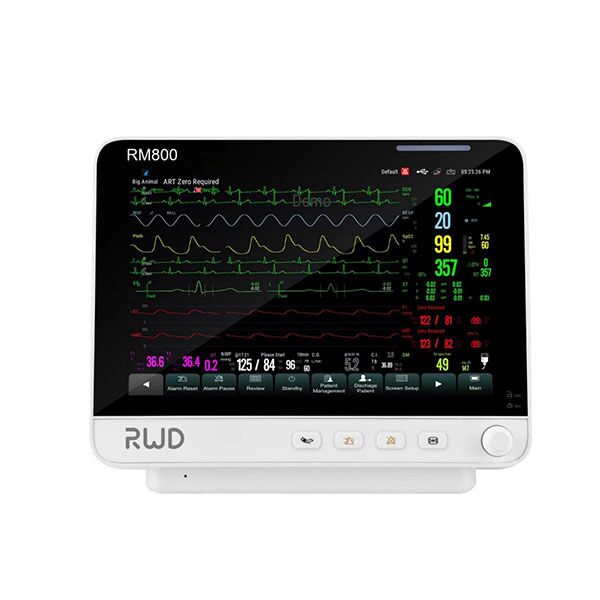

| RM800 | Veterinary Monitor with 12.1 inches screen SpO2,ECG,RESP,HR,NIBP , TEMP and Microflow CO2 |
| RM800T | Veterinary Monitor with 12 inches touch screen SpO2,ECG,RESP,HR,NIBP, TEMP and Microflow CO2 |
