Description
Overview

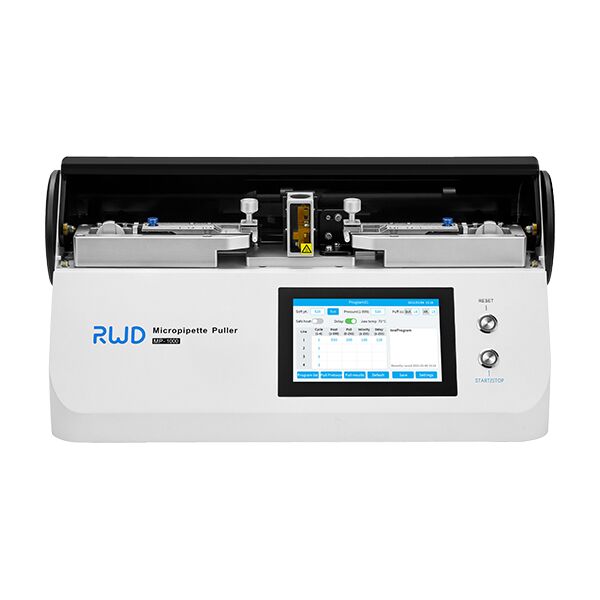

The MP-1000 Micropipette Puller is equipped with a color touchscreen and preset programs, making the production process of micropipette more reproducible and convenient. Its horizontal integrated operating arm structure, softening point testing, safe mode heating, and system diagnostic functions collectively ensure ideal pulling conditions, thereby achieving stable pulling with the microelectrode puller.
Other advanced features of the MP-1000 Micropipette Puller include the positional scale marking for glass tube, the positional scale marking and the fixing slot for the heating filament, , which facilitate the fixation and replacement of heating filaments. Additionally, it comes with an integrated plug-in humidity control chamber that allows for easy plug-and-play or removal.
Applications:
-
Patch-clamp experiment;
-
Microinjection or microelectrode: Cranial injection, Intravitreal injection, Insect injection, C. elegans injection, Embryo injection, Cell injection, Embryo Electroporation, Zebrafish Embryo injection ;
-
Others: 3D print nozzle, Cell capture, Microfluidic;
Features:
-
Its electrode resistance stability has been improved by at least 10%.
-
The horizontal integrated manipulation arm structure reduces assembly errors and enhances experimental experience.
-
Glass tube position scale marking facilitates the simultaneous extraction of two electrodes with identical length.
-
Its enlarged and more eye-catching buttons, along with extended levers, make operation even easier.
-
The unique position scale marking and the fixed position design of the heating filament makes it easier to replace various models of filaments.
-
According to the type of capillary glasses and heating filaments and the type of microelectrodes to be pulled (patch clamp microelectrodes, intracellular recording microelectrodes, etc.), the corresponding pull protocol is provided as a reference and can be modified according to special requirements.
-
The integrated plug-in humidity control chamber is easy to disassemble. The chamber can keep the air around the filament and the capillary glass dry during the pulling process, which can avoid the adverse effect of humid air on the pulling result.
-
The one-button glass softening point test function is displayed directly on the main interface for customer convenience.
-
The safe heat mode can avoid the damage of the filament from high temperature.
-
The preheating and constant temperature function can reduce the influence of the accumulation of jaw heat on the consistency of the pulling results during continuous pulling.
-
Every time, two microelectrodes with symmetrical tips are produced stably, featuring a tip diameter of less than 0.06 micrometers (μm), a taper length ranging from 3 to 15 millimeters (mm), and a resistance value with high repeatability, spanning from 1 to over 100 megohms (MΩ).
-
The system diagnostic function can be used to automatically check whether all components of the puller are in normal working condition.
-
The copy-and-paste function makes it easier to copy existing programs. It can store 150 user-defined programs.
Pull effect:
