Description

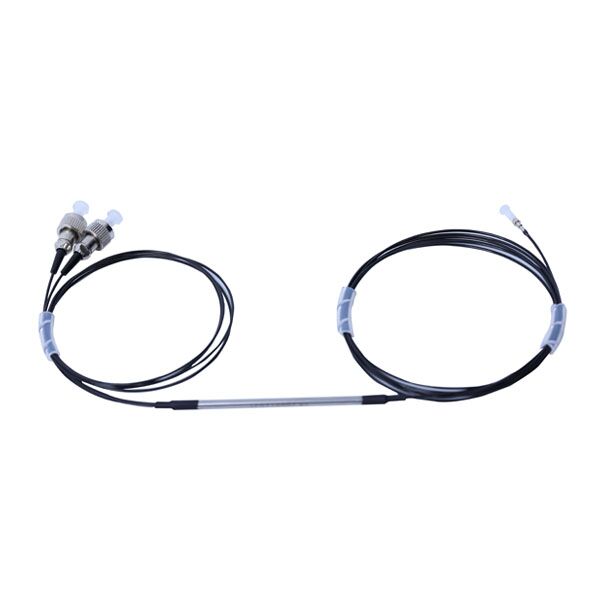

Fusion fiber is a solution designed for stimulating the same target brain region with two different light sources. The fusion fiber is divided into a bundle end and two beam splitting ends.
The beam splitting ends are two FC/PC ports, which are used to connect two machines with different light source wavelengths, and output the light to the beam combining end. Thus, it can simultaneously give two kinds of light stimulation in the same brain area.
Fusion fiber：
Applicable wavelength: 400nm-1100nm
Numerical aperture: 0.22, 0.37
Core diameter: 200μm
FC/PC Adapter with φ1.25mm or φ2.5mm, the bundle end is optional for 1.5m/2m, and the beam splitting end is optional for 0.5m/1m.
Specification
Order Information
| Product Name | Model |
| Fusion fiber-200μm，NA0.22，FC/PC Adapter with ?1.25 mm Ceramic Ferrule，bundle end-1.5m，beam splitting end-0.5m | YX0S-1*2-473-200/220-2.0-Φ1.25（FC）（150/50cm） |
| Fusion fiber-200μm，NA0.22，FC/PC Adapter? with ?1.25 mm Ceramic Ferrule，bundle end-2m，beam splitting end-1m | YX0S-1*2-473-200/220-3.0-Φ1.25(FC)（200/100cm） |
| Fusion fiber-200μm，NA0.22，FC/PC Adapter? with ?2.5 mm Ceramic Ferrule，bundle end -1.5m，beam splitting end-0.5m | YX0S-1*2-473-200/220-2.0-Φ2.5(FC)（150/50cm） |
| Fusion fiber-200μm，NA0.22，FC/PC Adapter? with ?2.5 mm Ceramic Ferrule，bundle end-2m，beam splitting end-1m | YX0S-1*2-473-200/220-3.0-Φ2.5(FC)（200/100cm） |
| Fusion fiber-200μm，NA0.37，FC/PC Adapter? with ?1.25 mm Ceramic Ferrule，bundle end-1.5m，beam splitting end-0.5m | YX0S-1*2-473-2.0-Φ1.25(FC)（150/50cm） |
| Fusion fiber-200μm，NA0.37，FC/PC Adapter? with ?1.25 mm Ceramic Ferrule，bundle end-2m，beam splitting end-1m | YX0S-1*2-473-3.0-Φ1.25(FC)（200/100cm) |
| Fusion fiber-200μm，NA0.37，FC/PC Adapter? with ?2.5 mm Ceramic Ferrule，bundle end-1.5m，beam splitting end-0.5m | YX0S-1*2-473-2.0-Φ2.5(FC)（150/50cm） |
| Fusion fiber-200μm，NA0.37，FC/PC Adapter? with ?2.5 mm Ceramic Ferrule，bundle end-2m，beam splitting end-1m | YX0S-1*2-473-3.0-Φ2.5（FC）（200/100cm） |
?
?
?
