Description

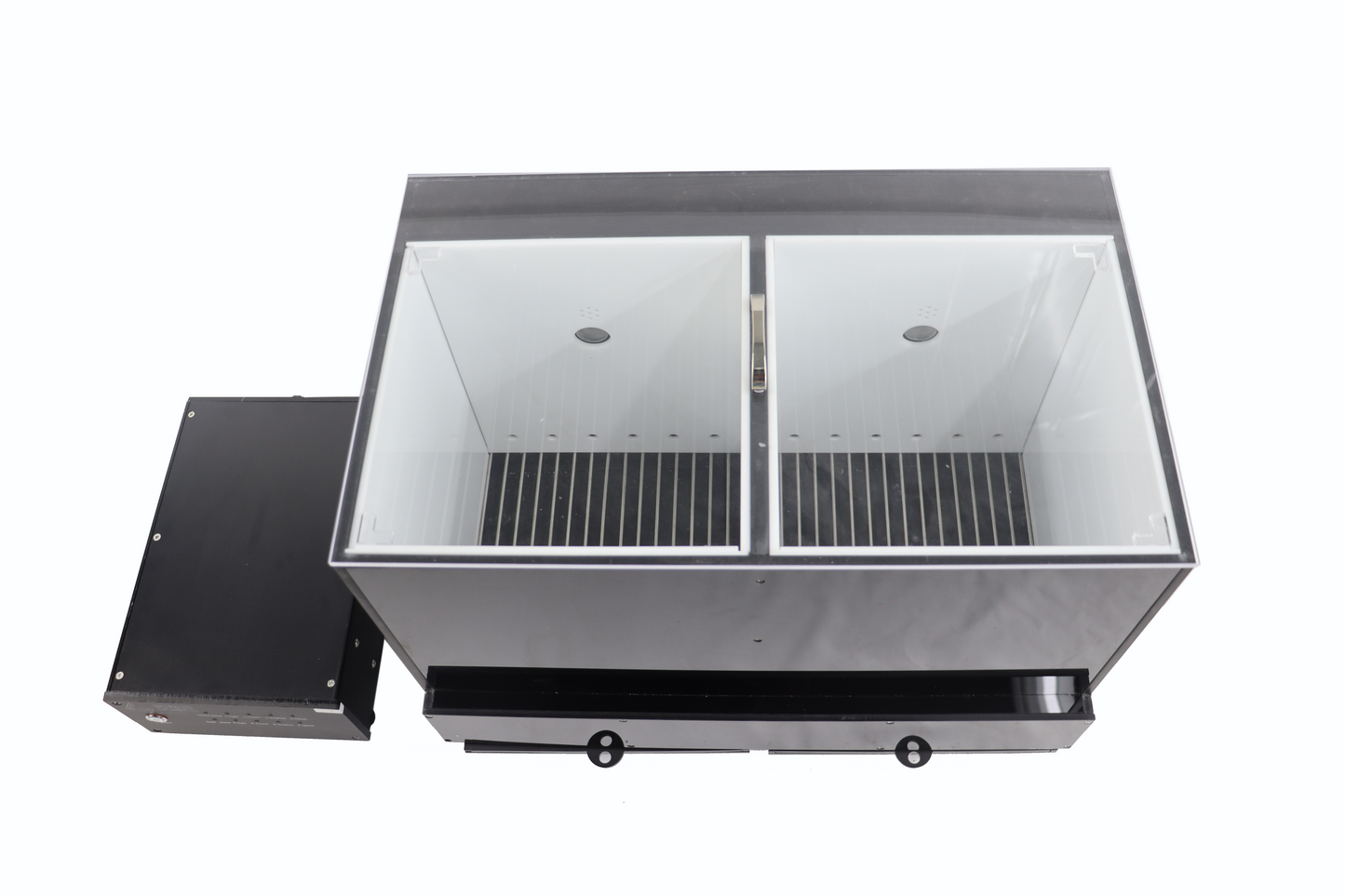

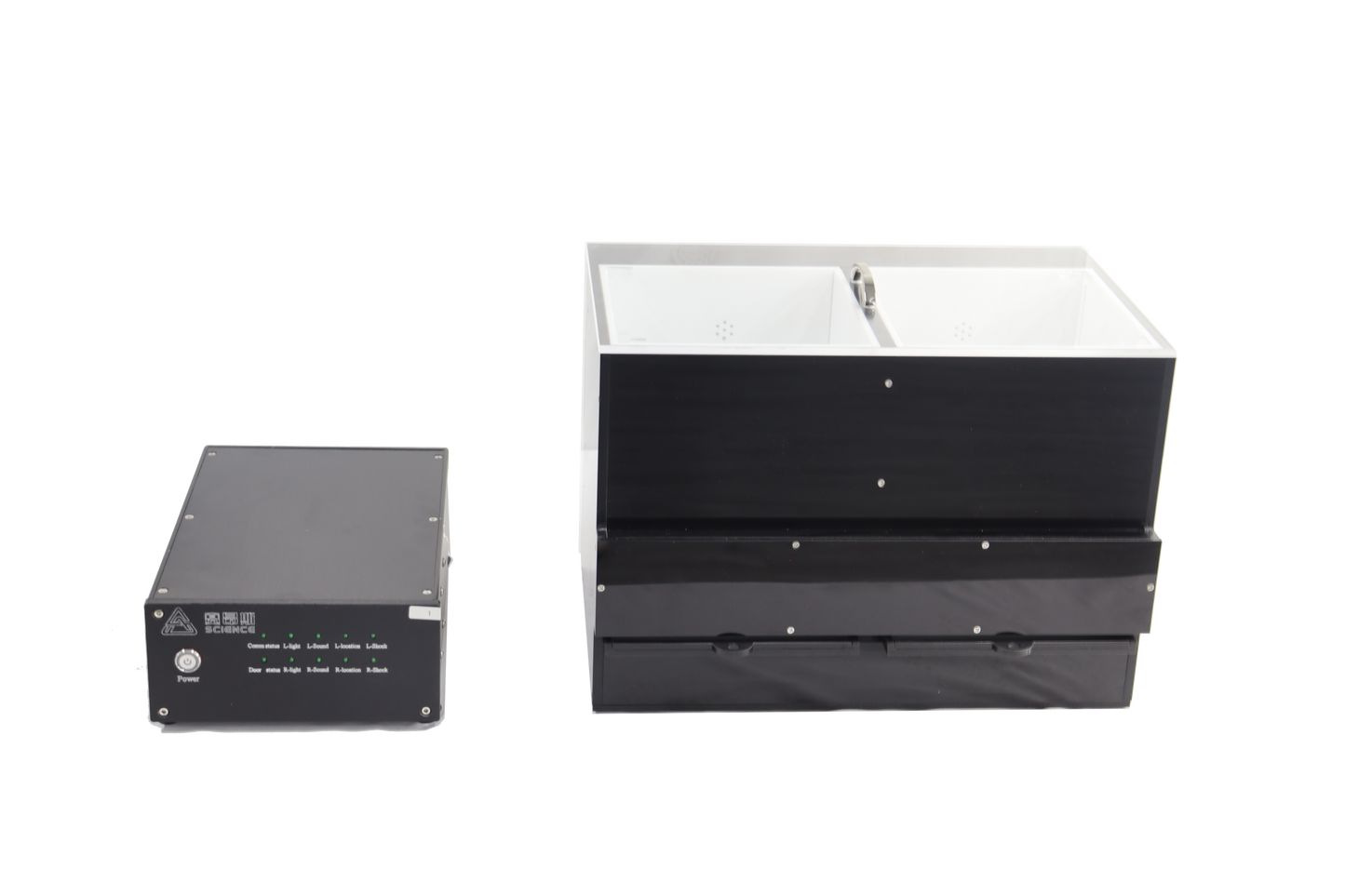

SANS Automated Shuttle Avoidance Box is a flexible system for active avoidance, passive avoidance and learned helplessness experiments. It comes with two independent chamber with grid floors that allow for flexible
adverse stimuli. Automatic door is integrated in the chamber for auto opening and closing to reduce the influence of human interaction during the experiment.
A top-loading door allows easy access inside the box. The chamber contains a sound generator and a visual stimulus (light) that functions separately for each compartment. Software be used through PC connection.
Shuttle Avoidance Test
When an aversive stimulus is applied, the subject learns to avoid the aversive stimulus by moving to the other side of the two-compartment chamber after the presentation of the stimulus.
Passive avoidance Test
After the motivation or training, the subject is forced to move to the preferred side of the two-compartment chamber. Then it confined to the dark portion of the chamber, and experiences inescapable aversive stimulus.
Learned Helplessness Test
Learned helplessness is the behavior exhibited by a subject after enduring repeated aversive stimuli beyond their control. When a subject is place in an inescapable aversive stimulus environment (i.e. electric shock), it will develop a kind of despair behavior, which is manifested as no longer avoiding the stimulus and interfering with subsequent adaptive responses.
Specification
🔹 General
- Applicable for Rats and Mice, maximum 32 chambers.
- Conforms to GLP standard requirements, and provides 3Q certification service.
- Stimuli: Sound, Light, Shock Scheduled start: 0–23h.
🔹 Software
- Independent signal detection control in each box to precisely detect signals.
- Independent software operated for separated channels.
- Shuttle, Passive Avoidance, Learned Helplessness supported in same shuttle chamber.
- Data exportable to .csv format for further analysis.
🔹 Sound
- 2 Independent chambers, each with range 100–40,000Hz; 1–95dB.
- Sound attenuating cubicle optional, less than 40dB.
🔹 Light
- 2 Independent light controls.
- Range: 0–400 LUX, resolution 1%.
- Visible and IR light dual bulb to detect position.
🔹 Electricity Shock
- 0.1–4.0mA in 0.1mA steps AC current. Alternating pulse current ensures full shock.
- Removable grid.
- 2 independent shock grid controls ensure high reliability.
- Data exportable to .csv/.doc format.
🔹 Chamber Operation
- Automatic door opening/closing to reduce human interaction.
- Speed: 2–8 cm/s
- Closing distance: 1–10 cm
- Opening/closing noise: less than 65 dB
🔹 Physical Info
| Mouse | Rat | |
| Main Controller | 22 cm × 23 cm × 7 cm | |
| Secondary Controller | 22 cm × 23 cm × 7 cm | |
| Shuttle Box (Exterior) | 43 cm × 30 cm × 32 cm | 53 cm × 35 cm × 42 cm |
| Shuttle Box (Interior) | 20 cm × 20 cm × 20 cm | 25 cm × 25 cm × 30 cm |
| Sound Attenuating Cubicle (Optional) | 70 cm × 60 cm × 75 cm | |
Order Information
| Item No. | Product Description |
| SA222M | Shuttle Avoidance Test for Mouse |
| SA222R | Shuttle Avoidance Test for Rat |
