Description
SA101Pro rodent treadmill is widely used for animal behavioral research, physiological study, biochemical, and molecular responses to both acute exercise stress and chronic exercise training. The automatic measurement of endurance, running distance, running time, number of shocks, shock time, current and exhaustion state are recorded in laboratory treadmill for mice and rats. Individual lane design and programming can benefit you for easy cleaning and accurate detection.
Adaptable: Treadmill for 5 Mice, Treadmill for 5 Rats, Treadmill for 5 Rats or 5 Mice, Treadmill for both 5 Mice and 5 Rats, Rabbit, Primates can be customized.
Overview:
The rodent treadmill running is a noninvasive method to evaluate fitness capacity in a longitudinal or cross-sectional manner.
It enables endurance testing simultaneously to assess a wide variety of physiological systems including the cardiovascular, respiratory, metabolic, and neuromuscular systems.

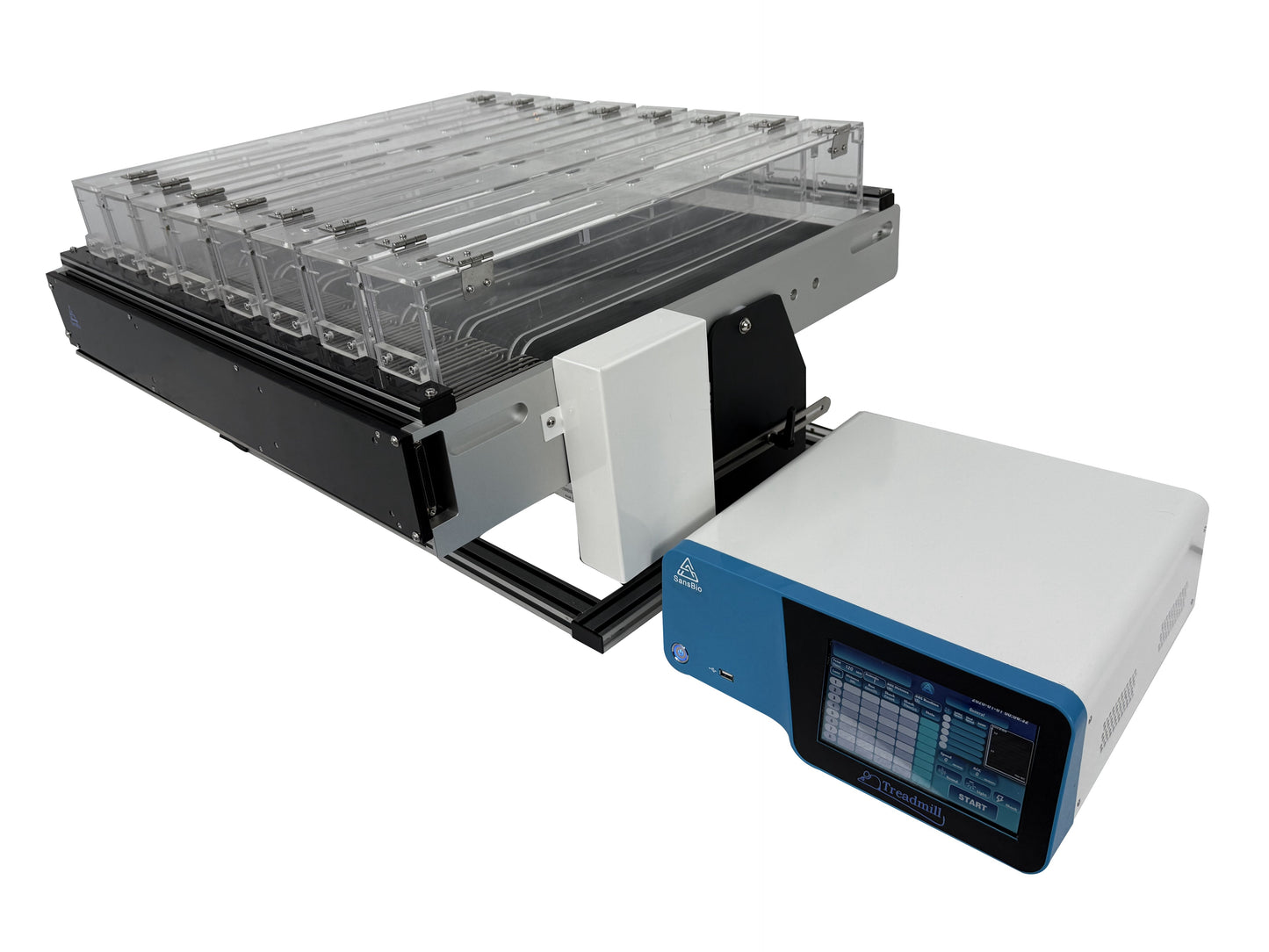

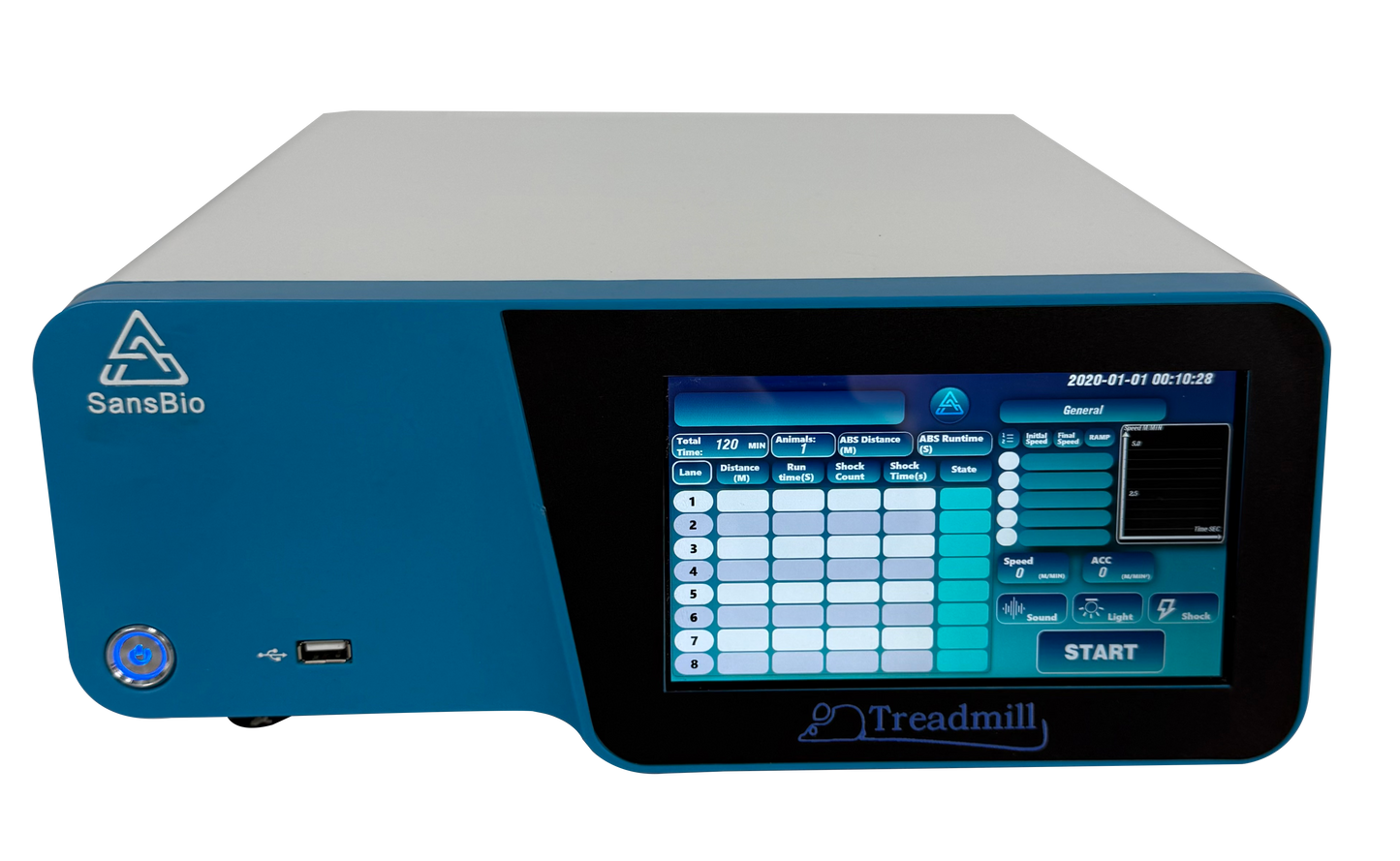

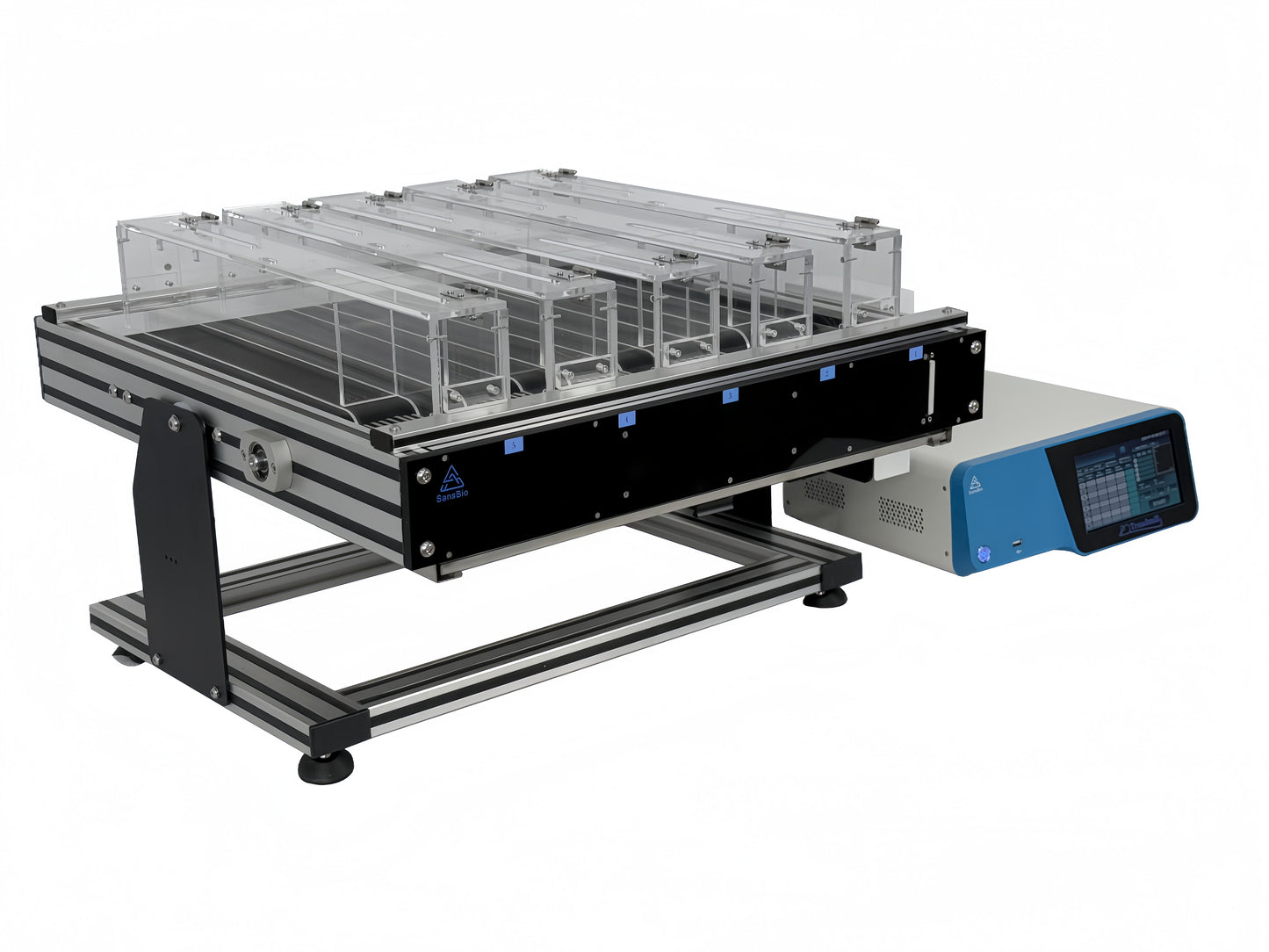

Our Mouse and Rat Treadmill consists of the main unit, incorporating the motor drive, the shocker, the control unit with 7 Inch touch screen, the running belt enclosed within a chamber constructed of acrylic and aluminum. The chamber contains a shock grid, which serves as an aversive stimulus to motivate exercise.
| Features | Benefits |
| One control unit and treadmill frame for both rats and mice | Cost saving and easily switch from Rats to Mice |

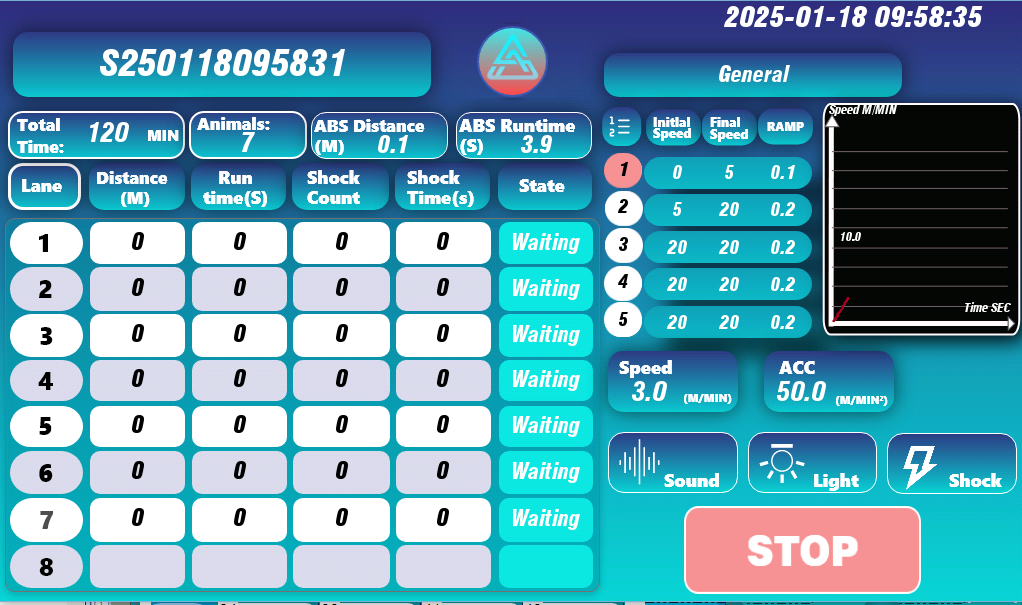

| 7-inch IPS 1024×768 HD display, visible Angle 178° | Larger display for easily data review and checking. |
| Motion modes: Uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode | Meet various demand of experiment |
| Shock: 9 pole pulse electric shock, 0.1mA–10mA adjustable | No blind area in stimulating the rodents |
| Electric, Sound, Light, Airpuff is optional | Both aversive and soft stimulation are available. |
| Five kinds of exhaustion mode | Ensure self-protection mechanism for rodent, very suitable for Exhaustion & Fatigue experiment. |
| >1000 data save | Larger volume of data store. |
Specification
| Features . | Benefits |
| One control unit and treadmill frame for both rats and mice | Cost saving and easily switch from Rats to Mice |
| 7-inch IPS 1024×768 HD display, visible Angle 178° | Larger display for easily data review and checking. |
| Motion modes: Uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode | Meet various demand of experiment |
| Shock: 9 pole pulse electric shock, 0.1mA–10mA adjustable | No blind area in stimulating the rodents |
| Electric, Sound, Light, Airpuff is optional | Both aversive and soft stimulation are available. |
| Five kinds of exhaustion mode | Ensure self-protection mechanism for rodent, very suitable for Exhaustion & Fatigue experiment. |
| >1000 data save | Larger volume of data store. |
🔹 Basic Specification
| Application | 5 Rats/5 Mice |
| Commands | 7″ capacitive IPS LCD touch screen |
| Power | 100–240 VAC, 50–60Hz |
| Sound Level | < 60 dB (A) |
🔹 Operation
| Mode | uniform speed, uniform acceleration, uniform deceleration, acceleration and deceleration mixed mode |
| Speed | 0.1–100 m/min adjustable, resolution 0.01 m/min |
| Acceleration | 0.1–100 m/min² |
| Start/Stop | From the touch screen |
| Detection | When touch the electric shock grid |
| Stimulation | Pulse electric, sound, light |

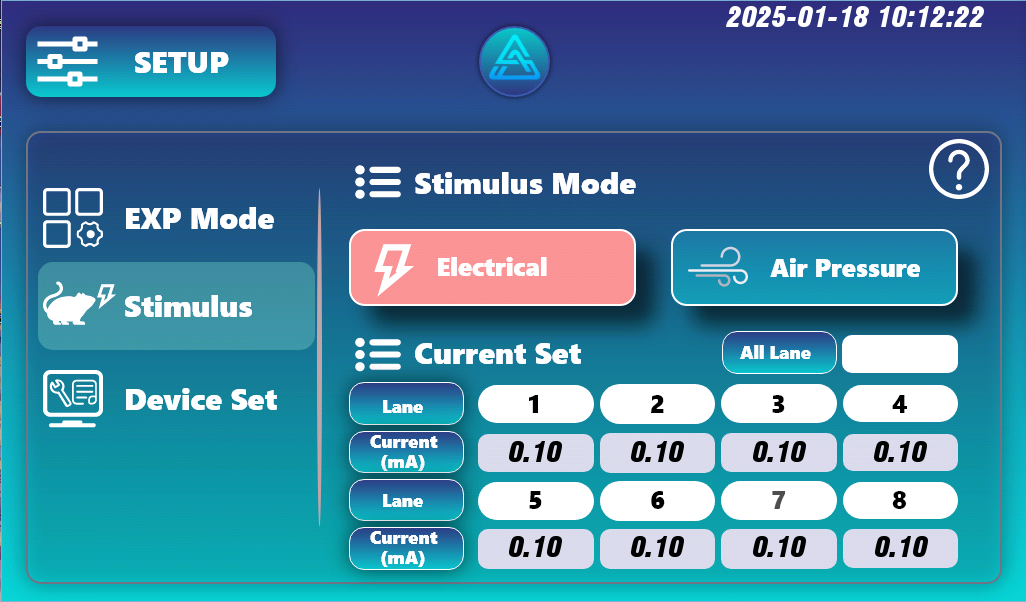

| Shock | 0.1mA–10mA adjustable, pulse electric shock |
| Sound | 1000–10KHz frequency adjustable |
| Light | 1–5000Hz frequency adjustable |
| Lane slope | -25° ~ 25° |
| 5 kinds of exhaustion mode | Distance, Time & Shock |
| Results | Distance, running time, number of shocks, shock time, current, exhaustion state, speed |
| Data export | By USB flash drive in csv or excel |
| Data save | >1000 |
🔹 Physical Size
| Mouse Treadmill | Rat Treadmill | |
| Lanes | 5 lanes | 5 lanes |
| Overall Size | 69.5×69.5×42.5 cm (27.3×27.3×16.7 inch) | 69.5×69.5×44 cm (27.3×27.3×17.3 inch) |
| Running Belt Size | 69.5×69.5×34.5 cm (31.3×27.3×13.5 inch) | 69.5×69.5×34.5 cm (31.3×27.3×13.5 inch) |
| Lane Size (L×W×H) | 61×8.5×15 cm | 61×11.5×16.5 cm |
| Independent Lane Control | Yes | Yes |
| Shock Grid Size | 12×6 cm | 12×12 cm |
| Speed: 1–100 meter/minute | ||
| Lane slope degree: -25° ~ 25° | ||
| Acceleration: Adjustable acceleration in 0.1 meter/minute increments | ||
| >Adjustable current stimulus: 0.01 – 10 mA | ||
| Treadmill controller: 32×34×12 cm (length × width × height), weight: 7.5 k | ||
| Structure: Clear, removable acrylic maze walls and an aluminum frame | ||
Order Information
| Item No. | Product | Components |
| SA101Pro-M | Treadmill for 5 Mice | Sound, light, electric stimulation, adjustable acceleration, different time section, separate lane, adjustable lane length, independent electric stimulation, independent timing for each lane, current can be set. |
| SA101Pro-R | Treadmill for 5 Rats | Same with SA101Pro-M |
| SA101Pro | Treadmill for 5 Rats or 5 Mice | Same with SA101Pro-M |
| SA101DM | Treadmill for 5 Mice (with Airpuff) | Sound, light, electric stimulation, adjustable acceleration, different time section, separate lane, adjustable lane length, independent electric stimulation, independent timing for each lane, airpuff stimulation |
| SA101DR | Treadmill for 5 Rats (with Airpuff) | Same with SA101DM |
| SA101D | Treadmill for 5 Rats and 5 Mice (with Airpuff) | Same with SA101DM |
