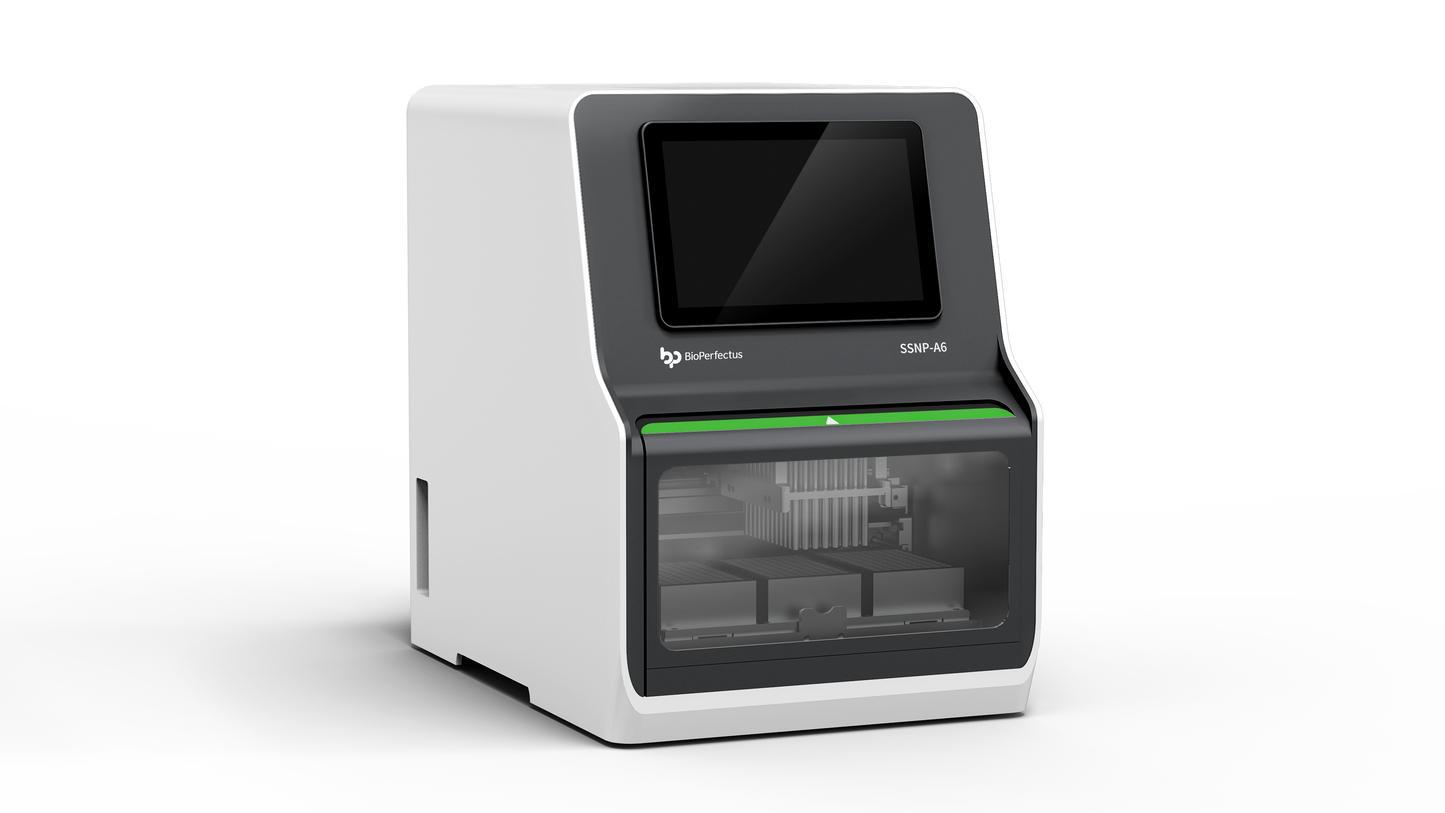

The nucleic acid extraction system SSNP-A6 (referred to as "SSNP-A6" below) is an in vitro diagnostic medical device, which integrates cutting-edge mechanical, electronic and software technologies to enable automated extraction of nucleic acids from samples. SSNP-A6 can extract nucleic acids from 96 samples simultaneously to meet the requirement for high throughput.The equipment is intended for use with magnetic bead-based nucleic acid extraction kits for the extraction and purification of nucleic acids from clinical samples.
Scope of application: The equipment is intended for use with magnetic bead-based nucleic acid extraction kits to extract and purify nucleic acids from clinical samples.
NMPA,CE,FDA-listed
Model | SSNP-A6 |
Sample capability | 1-96 |
Magnetic bead recycle rate | ≥98% |
Plate type | 96-deep-well plate |
Processing volume | 20uL-1000uL |
Size (W*D*H) | 380×540×520mm |
Weight | 24kg |
Mixing mode | Multiple modes and speeds (> 20 gears) |
Heating temperature | Cracking heating temperature: room temperature to 120℃ |
Elution heating temperature: room temperature to 120℃ | |
Voltage | 100-240V~ |
Frequency | 50/60Hz |
Rated power | 420VA |
